Surface and Radiological Anatomy Practice Questions

Q: The pleural reflection on the left midaxillary line is located in which intercostal space?

10th. The correct answer is **D. 10th**. [1] ### **Explanation of the Concept** The pleura is a serous membrane that extends beyond the borders of the lungs to create the pleural cavity. [1] Understanding the surface anatomy of the pleura is a high-yield topic for NEET-PG, often remembered by the **"Rule of Even Numbers" (2, 4, 6, 8, 10, 12)**. The inferior border of the pleura follows a predictable path across the thoracic cage: * **Midclavicular line:** 8th rib * **Midaxillary line:** 10th rib/10th intercostal space * **Scapular line:** 12th rib At the **midaxillary line**, the costodiaphragmatic recess is at its deepest point. The pleural reflection crosses the **10th rib**, placing it in the **10th intercostal space**. ### **Analysis of Incorrect Options** * **A & B (5th and 6th):** These levels are too superior. The lower border of the **lung** (not pleura) at the midclavicular line is at the 6th rib. * **C (8th):** This is the level of the **pleural reflection at the midclavicular line**. It is also the level of the **lung border at the midaxillary line**. ### **NEET-PG High-Yield Pearls** 1. **The 2-Rib Gap:** The lung usually ends two ribs higher than the pleura at any given vertical line (e.g., at the midaxillary line, the lung ends at the 8th rib, while the pleura ends at the 10th). 2. **Thoracocentesis (Pleural Tap):** To avoid injuring the lung, the needle is typically inserted in the **8th or 9th intercostal space** in the midaxillary line, which is within the costodiaphragmatic recess but below the lung border. 3. **Left Side Variation:** On the left side, the anterior border of the pleura deviates laterally at the 4th costal cartilage to accommodate the heart (cardiac notch), unlike the right side which continues straight down to the 6th.

Q: To which rib does the pleura extend in the mid-axillary line?

10th rib. The extent of the lungs and the pleura follows a predictable anatomical pattern based on surface markings. The parietal pleura always extends lower than the lungs, creating the **costodiaphragmatic recess** [1]. The lower limit of the **pleura** follows the "Rule of Even Numbers" (8, 10, 12): 1. **Mid-clavicular line:** 8th rib 2. **Mid-axillary line:** 10th rib (Correct Answer) 3. **Scapular line/Paravertebral:** 12th rib **Analysis of Options:** * **A. 8th rib:** This is the lower limit of the pleura at the mid-clavicular line. It is also the lower limit of the **lung** at the mid-axillary line. * **B. 9th rib:** This is an intermediate point and does not correspond to the standard surface markings for the lung or pleura in the mid-axillary line [1]. * **C. 10th rib (Correct):** As per the anatomical rule, the pleura reaches its lateral-most inferior extent at the 10th rib in the mid-axillary line. * **D. 11th rib:** This is an incorrect landmark for the pleura in the mid-axillary line. **NEET-PG High-Yield Pearls:** * **The 2-Rib Rule:** The pleura generally sits two ribs lower than the lung at any given vertical line (e.g., at the mid-axillary line, the lung ends at the 8th rib while the pleura ends at the 10th). * **Thoracocentesis (Pleural Tap):** To avoid lung injury, the needle is typically inserted in the 8th or 9th intercostal space in the mid-axillary line, which lies within the costodiaphragmatic recess (below the lung but above the pleural reflection) [2]. * **Spleen Relation:** The left costodiaphragmatic recess (10th rib) is a crucial landmark as it relates to the upper pole of the spleen; trauma here can involve both the pleura and the spleen.

Q: At which vertebral level is the fundus of the gallbladder typically located?

L1. The fundus of the gallbladder is a high-yield anatomical landmark in surface anatomy. It is typically located at the level of the **L1 vertebra**. [1] **Why L1 is correct:** The fundus of the gallbladder lies at the intersection of the **right transpyloric plane** and the **right semilunar line** (lateral border of the rectus abdominis). The transpyloric plane is a horizontal plane passing through the midpoint between the suprasternal notch and the pubic symphysis, which corresponds to the lower border of the **L1 vertebra**. At this point, the fundus comes into contact with the anterior abdominal wall at the tip of the **9th right costal cartilage**. **Why other options are incorrect:** * **L3:** This level corresponds to the **subcostal plane** and the origin of the inferior mesenteric artery. It is too low for the gallbladder. * **S1:** This level corresponds to the **sacral promontory** and the pelvic brim. * **S3:** This level marks the beginning of the **rectum** where the sigmoid colon loses its mesentery. **Clinical Pearls for NEET-PG:** * **Murphy’s Point:** The surface projection of the gallbladder fundus. [1] Pressure here during deep inspiration causes sharp pain in patients with cholecystitis (**Murphy’s Sign**). * **Transpyloric Plane (L1) Landmarks:** Includes the pylorus of the stomach, hila of both kidneys (left at L1, right slightly lower), neck of the pancreas, and the origin of the superior mesenteric artery. * **Radiological Note:** On an erect X-ray or cholecystogram, the gallbladder may descend to L2 or L3 due to gravity, but its standard anatomical position is L1.

Q: The tympanic note on percussion in Traube's space on the chest wall is due to which underlying structure?

Fundus of stomach. ### **Explanation** **Traube’s space** is a crescent-shaped anatomical region located on the left lower chest wall. The characteristic **tympanic note** heard upon percussion of this space is due to the presence of the **gas-filled fundus of the stomach**. #### **Why the Fundus of Stomach is Correct** Traube’s space is bounded superiorly by the lower border of the left lung, inferiorly by the left costal margin, and laterally by the anterior border of the spleen. Since the fundus of the stomach lies directly beneath the diaphragm in this region and typically contains a "gas bubble," percussion yields a resonant, drum-like (tympanic) sound. #### **Analysis of Incorrect Options** * **A. Base of lung:** The base of the left lung forms the superior boundary of Traube’s space. If the lung expands (as in deep inspiration) or if there is a pleural effusion, the tympanic note is replaced by dullness. * **C. Left costo-diaphragmatic recess:** This is a potential space of the pleural cavity. While it overlaps the area, it is normally empty. If it fills with fluid (pleural effusion), it causes "dullness" in Traube’s space, which is a key clinical sign. * **D. Left subphrenic space:** This is an anatomical compartment between the diaphragm and the liver/spleen. While the stomach resides in the left supra-mesocolic area, the specific reason for the *tympanic* note is the air within the hollow viscus (stomach), not the potential space itself. #### **Clinical Pearls for NEET-PG** * **Dullness in Traube’s Space:** This is a high-yield clinical finding. The tympanic note becomes **dull** in: 1. **Splenomegaly** (the most common exam-related cause). 2. **Left-sided pleural effusion**. 3. **Full stomach** (post-meal). 4. **Enlargement of the left lobe of the liver**. * **Boundaries (The "Four S's"):** **S**uperior (6th rib), **S**igmoid/Lateral (Mid-axillary line/Spleen), **S**ub-inferior (Left costal margin).

Q: What is the surface marking of the mitral valve?

Behind the sternal end of the left 4th costal cartilage. The surface marking of heart valves is a high-yield topic for NEET-PG, requiring a clear distinction between where a valve is **anatomically located** versus where it is **best auscultated**. ### **Explanation of the Correct Answer** The **Mitral (Bicuspid) valve** is anatomically situated behind the left half of the sternum, opposite the **left 4th costal cartilage**. It is the most posterior and left-sided of all the heart valves. [1] ### **Analysis of Incorrect Options** * **Option B:** The **Tricuspid valve** is located behind the right half of the sternum at the level of the 4th/5th intercostal spaces. [1] * **Option C:** This is the **Auscultatory Area** for the mitral valve (the apex beat). While the valve is anatomically behind the 4th cartilage, the sound is carried by the flow of blood to the 5th left intercostal space in the midclavicular line. * **Option D:** The **Pulmonary valve** is located at the level of the left 3rd costal cartilage (at its junction with the sternum). [1] ### **High-Yield NEET-PG Pearls** To remember the anatomical positions of the valves from superior to inferior, use the mnemonic **"PAMT"** (3, 3.5, 4, 4.5): 1. **P**ulmonary: Left 3rd costal cartilage. [1] 2. **A**ortic: Left 3rd intercostal space. [1] 3. **M**itral: Left 4th costal cartilage. [1] 4. **T**ricuspid: Right 4th/5th intercostal space. [1] **Clinical Note:** Always distinguish between **Anatomical Position** (where the valve is) and **Auscultatory Area** (where you place the stethoscope). For the Mitral valve, the anatomical position is the left 4th costal cartilage, but the auscultatory area is the 5th intercostal space.

Q: Which of the following structures does the ureter cross on an abdominal radiograph?

Sacroiliac joint.. ### Explanation The ureter is a muscular tube that transports urine from the kidney to the bladder. Its course is a high-yield topic in radiological anatomy, particularly for identifying urinary calculi on a plain X-ray (KUB). **Why Option C is Correct:** As the ureter descends from the renal pelvis, it runs vertically downward on the **psoas major muscle**, corresponding to the tips of the **transverse processes** of the lumbar vertebrae. At the pelvic brim, the ureter crosses the bifurcation of the common iliac artery (or the beginning of the external iliac artery) [1] and passes directly anterior to the **Sacroiliac (SI) joint**. On a radiograph, this is the classic landmark where the ureter enters the true pelvis. **Analysis of Incorrect Options:** * **A. Bodies of the lumbar vertebrae:** The ureter runs lateral to the vertebral bodies, aligned with the tips of the transverse processes, not over the bodies themselves. * **B. Ischial tuberosity:** This is a posteroinferior structure of the pelvis. The ureter remains more medial and anterior to this, eventually turning medially at the level of the **ischial spine** to enter the bladder. * **D. Pubic tubercle:** The ureter ends at the vesicoureteric junction, which is located well medial to the pubic tubercle. **Clinical Pearls for NEET-PG:** 1. **Constrictions of the Ureter:** Calculi are most likely to lodge at three sites: * Pelviureteric junction (L2 level). * Pelvic brim (crossing the iliac vessels/SI joint) [1]. * Vesicoureteric junction (narrowest part). 2. **Relation to Gonadal Vessels:** The ureter is crossed anteriorly by the gonadal vessels ("Water under the bridge" usually refers to the uterine artery, but the ureter itself is posterior to these vessels). 3. **Radiological Landmark:** On a KUB film, the ureter follows a line from the transverse process of L2 to the ischial spine.

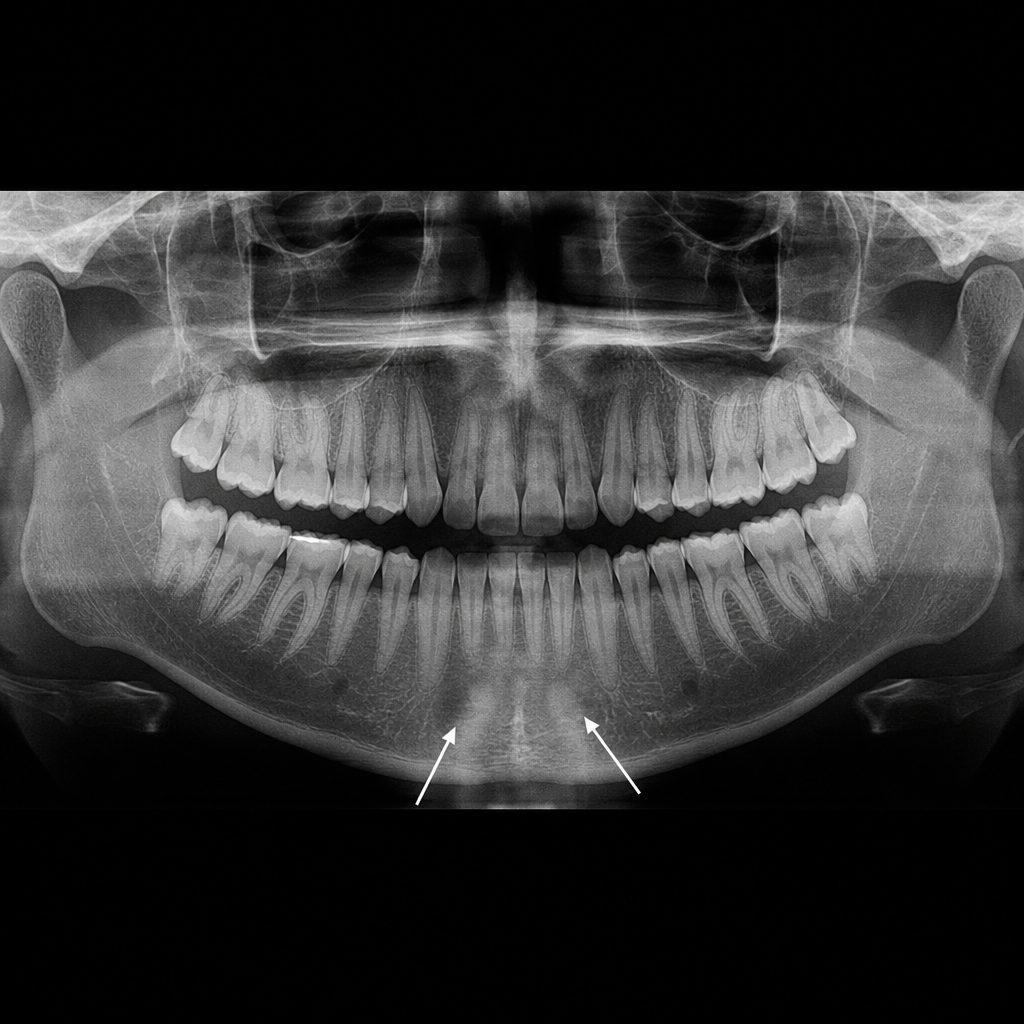

Q: The symmetrical radiopacities marked with arrows are most likely?

Mental ridges. ***Mental ridges*** - **Bilateral symmetrical radiopacities** on the anterior mandible below the canine-premolar region are characteristic of **mental ridges**, which are bony prominences that provide muscle attachment sites. - They appear as **paired radiopaque lines** running horizontally on either side of the mandibular symphysis and are normal anatomical landmarks. *Genial tubercle* - Appears as a **radiopaque ring or button-like structure** at the **midline symphysis**, not as bilateral symmetrical radiopacities. - Located at the **lingual aspect** of the mandibular symphysis and serves as attachment for **geniohyoid and genioglossus muscles**. *Mylohyoid ridges* - Appear as **oblique radiopaque lines** running posteriorly from the **premolar to molar region**, not as anterior symmetrical structures. - Located on the **lingual surface** of the mandible and provide attachment for the **mylohyoid muscle**. *Both genial tubercle and mental ridges* - **Genial tubercles** appear as a single midline radiopaque structure, not bilateral symmetrical radiopacities as described. - This combination would show different radiographic patterns - a **central ring-like opacity** (genial tubercle) plus **bilateral horizontal ridges** (mental ridges).

Q: The spine of the scapula can be palpated at which of the following vertebral level?

T3. Explanation: The scapula is a key landmark in surface anatomy used to identify vertebral levels during clinical examinations. The **spine of the scapula** is a prominent bony ridge on its posterior surface. Its medial end (the root of the spine) lies horizontally opposite the **spinous process of the T3 vertebra**. **Why T3 is correct:** In a person standing in the anatomical position with arms at the side, the medial border of the scapula crosses specific vertebral levels: * **Superior Angle:** Corresponds to the level of **T2**. * **Root of the Spine:** Corresponds to the level of **T3**. * **Inferior Angle:** Corresponds to the level of **T7**. **Analysis of Incorrect Options:** * **A (T1):** This level is superior to the scapular spine. The T1 spinous process is often confused with C7 (Vertebra Prominens), which is the first prominent landmark at the base of the neck. * **C (T5):** This level corresponds to the middle of the medial border of the scapula, between the spine and the inferior angle. * **D (T7):** This is a high-yield landmark for the **Inferior Angle** of the scapula. It is frequently used to locate the 7th intercostal space or to identify the level for a thoracocentesis. **High-Yield Clinical Pearls for NEET-PG:** 1. **Inferior Angle (T7):** In the sitting position, the inferior angle may drop to the level of T8. 2. **Counting Ribs:** The scapula covers ribs 2 through 7. 3. **Sternal Angle (Angle of Louis):** Corresponds to the T4-T5 intervertebral disc level posteriorly. 4. **Xiphisternal Joint:** Corresponds to the T9 vertebral level.

Q: Identify the tarsal bone marked by the arrow in the given X-ray of the right foot.

Navicular. ***Navicular*** - The arrow correctly identifies the **navicular** bone, a boat-shaped tarsal bone situated on the **medial side** of the midfoot. It articulates proximally with the head of the **talus** and distally with the three **cuneiform** bones. - The navicular is a crucial component of the **medial longitudinal arch** of the foot and is a common site for avascular necrosis (**Köhler disease** in children) or stress fractures. *Cuboid* - The **cuboid** bone is located on the **lateral aspect** of the foot, articulating with the calcaneus proximally and the fourth and fifth metatarsals distally. The structure indicated by the arrow is on the medial side. - It forms the keystone of the **lateral longitudinal arch** and is not the bone indicated in the X-ray. *Intermediate cuneiform* - The **intermediate cuneiform** bone is located **distal** (further towards the toes) to the navicular bone, between the medial and lateral cuneiforms. - It articulates distally with the base of the **second metatarsal**, forming part of the **Lisfranc joint** complex. *Lateral cuneiform* - The **lateral cuneiform** is also situated **distal** to the navicular, lateral to the intermediate cuneiform, and medial to the cuboid bone. - It articulates distally with the base of the **third metatarsal** and is not the bone marked by the arrow, which is more proximal.

Question 1

The pleural reflection on the left midaxillary line is located in which intercostal space?

Accepted Answer

10th

Answer

5th

Answer

6th

Answer

8th

Question 2

To which rib does the pleura extend in the mid-axillary line?

Accepted Answer

10th rib

Answer

8th rib

Answer

9th rib

Answer

11th rib

Question 3

At which vertebral level is the fundus of the gallbladder typically located?

Accepted Answer

L1

Answer

L3

Answer

S1

Answer

S3

Question 4

The tympanic note on percussion in Traube's space on the chest wall is due to which underlying structure?

Accepted Answer

Fundus of stomach

Answer

Base of lung

Answer

Left costo-diaphragmatic recess

Answer

Left subphrenic space

Question 5

What is the surface marking of the mitral valve?

Accepted Answer

Behind the sternal end of the left 4th costal cartilage

Answer

Behind the sternal end of the right 4th costal cartilage

Answer

Left 4th intercostal space in the midclavicular line

Answer

Left 3rd intercostal space in the midclavicular line

Question 6

Which of the following structures does the ureter cross on an abdominal radiograph?

Accepted Answer

Sacroiliac joint.

Answer

The bodies of the lumbar vertebrae.

Answer

Ischial tuberosity.

Answer

Pubic tubercle.

Question 7

What is the anatomical landmark for the mid-inguinal point?

Accepted Answer

Midpoint between the anterior superior iliac spine and the pubic symphysis.

Answer

Midpoint of the anterior superior iliac spine and the pubic tubercle.

Answer

Midpoint of both anterior superior iliac spines.

Answer

Midpoint of the inguinal ligament.

Question 8

The symmetrical radiopacities marked with arrows are most likely?

Accepted Answer

Mental ridges

Answer

Genial tubercle

Answer

Mylohyoid ridges

Answer

Both genial tubercle and mental ridges

Question 9

The spine of the scapula can be palpated at which of the following vertebral level?

Accepted Answer

T3

Answer

T1

Answer

T5

Answer

T7

Question 10

Identify the tarsal bone marked by the arrow in the given X-ray of the right foot.

Accepted Answer

Navicular

Answer

Cuboid

Answer

Intermediate cuneiform

Answer

Lateral cuneiform
