Surface and Radiological Anatomy Practice Questions

Q: Which anatomical structure is characterized by a worm-hole radiolucency?

Nutrient canal. ### Explanation **Correct Answer: C. Nutrient canal** **Anatomical Concept:** Nutrient canals are small, tunnel-like passages in the alveolar bone that house blood vessels and nerves supplying the teeth and gingiva. On a radiograph (especially intraoral periapical views), they appear as thin, vertical, linear radiolucencies. When these canals are viewed in a specific orientation or are particularly prominent in the mandibular anterior region (where the bone is thin), they present as small, dark, circular spots or linear streaks. This characteristic radiographic appearance is classically described as **"worm-hole" radiolucency.** **Analysis of Incorrect Options:** * **A. Maxillary sinus:** This appears as a large, well-defined, radiolucent "pneumatized" cavity in the maxilla, often bordered by a thin white line (cortical border). It does not exhibit a "worm-hole" pattern. * **B. Mandibular canal:** This is a significant, continuous radiolucent band bounded by radiopaque cortical lines, housing the inferior alveolar nerve and vessels. It is much larger and more structured than nutrient canals. * **D. Mental foramen:** This typically appears as a single, well-defined, oval or round radiolucency located near the apices of the mandibular premolars. **High-Yield Clinical Pearls for NEET-PG:** * **Location:** Nutrient canals are most commonly seen in the **mandibular incisor region** and the walls of the maxillary sinus. * **Clinical Significance:** They are more prominent in patients with **periodontal disease** or **thin alveolar bone** (senile atrophy). * **Differential Diagnosis:** They should not be confused with fracture lines or periapical pathology. Unlike fractures, nutrient canals have smooth, cortical borders and follow a predictable anatomical path. * **Radiographic Landmark:** They are often seen as vertical lines between the roots of the mandibular incisors.

Q: In the provided X-ray, what anatomical structure is indicated by the marked region?

Pedicle. ***Pedicle*** - The **pedicle** appears as the **"owl-eye" sign** on AP spinal X-rays, representing the rounded shadow projections from each vertebral body. - Pedicles connect the **vertebral body** to the **posterior elements** and are clearly visible as bilateral circular shadows on anteroposterior views. *Transverse process* - The **transverse process** extends laterally from the vertebra and appears as **wing-like projections** on AP X-rays, not circular shadows. - Located more **laterally** than the pedicles and has a distinct elongated appearance rather than the rounded owl-eye configuration. *Lamina* - The **lamina** forms the **posterior arch** of the vertebra and is not typically visible as distinct circular structures on AP views. - Better visualized on **lateral X-rays** where it forms part of the **posterior spinal canal** boundary. *None of the above* - This option is incorrect as the **pedicle** is clearly the correct anatomical structure being indicated. - The **owl-eye appearance** is pathognomonic for pedicles on AP spinal radiographs.

Q: Sappey's line denotes a line encircling which anatomical region?

The trunk just above the umbilicus. **Sappey’s line** is a critical landmark in lymphatic anatomy, specifically related to the drainage of the skin [1]. It refers to a horizontal line encircling the trunk, passing approximately **2 cm above the umbilicus** (transumbilical line) and extending to the level of the second lumbar vertebra posteriorly [1]. ### Why the correct answer is right: The significance of Sappey’s line lies in the **watershed area** of cutaneous lymphatic drainage. * **Above the line:** Lymph from the skin drains upwards into the **axillary lymph nodes** [1]. * **Below the line:** Lymph from the skin drains downwards into the **superficial inguinal lymph nodes** [1]. The umbilicus itself is a unique site where these drainage patterns meet, making Sappey’s line the functional boundary between the upper and lower trunk lymphatics. ### Why the incorrect options are wrong: * **Option A (Neck at C6):** This level is significant for the cricoid cartilage, the beginning of the trachea/esophagus, and the carotid tubercle (Chassaignac's tubercle), but it has no association with Sappey’s line. * **Option C (Salpingian tubes):** While Marie Philibert Constant Sappey was an anatomist who studied various structures, "Sappey’s line" specifically refers to the trunk's lymphatic watershed, not the Fallopian (salpingian) tubes. ### High-Yield Clinical Pearls for NEET-PG: * **Clinical Application:** Understanding Sappey’s line is vital for predicting the **metastatic spread** of skin cancers (like melanoma) on the trunk. * **Sappey’s Plexus:** Do not confuse the line with the subareolar lymphatic plexus of the breast, also named after Sappey. * **Vertical Watershed:** The midline of the body acts as a vertical watershed; lymph rarely crosses the midline under normal physiological conditions.

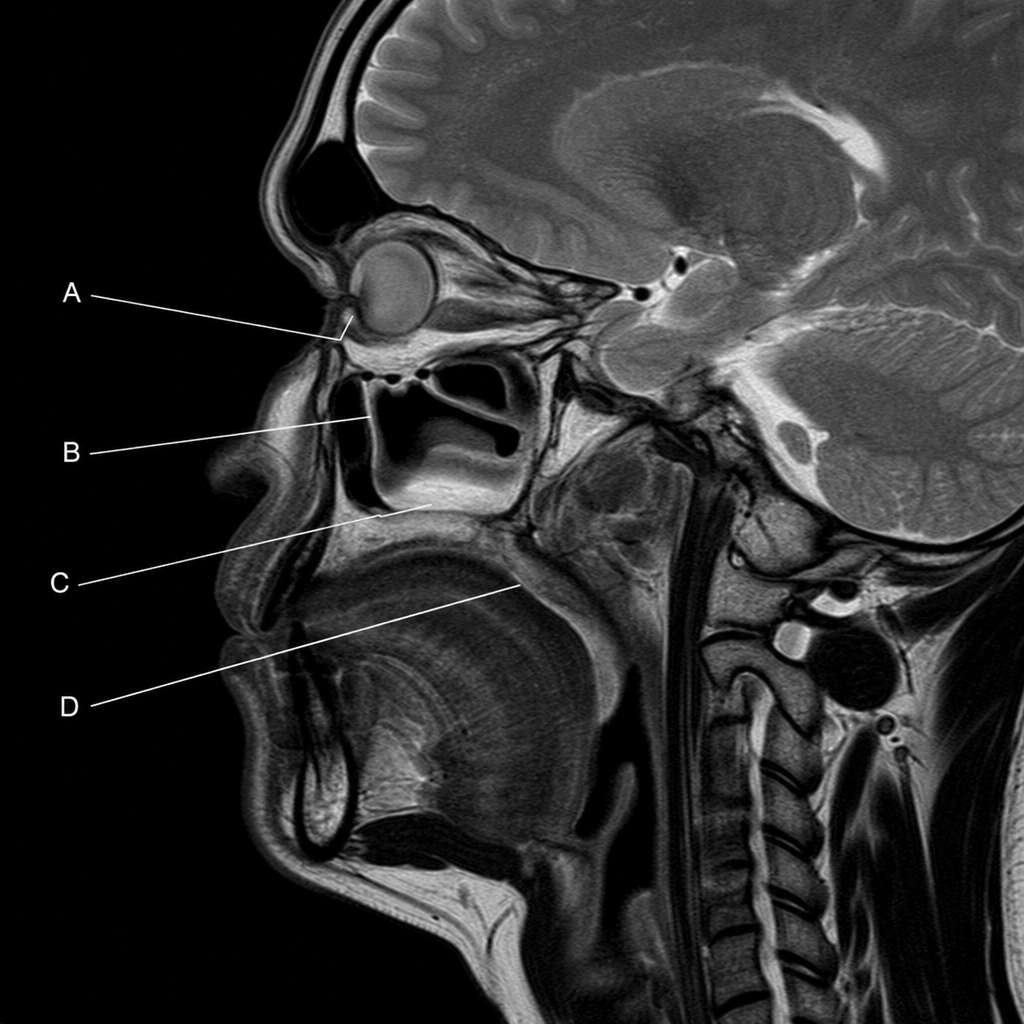

Q: In an MRI scan showing a sagittal section through the head and neck, tears drain through the nasolacrimal duct into the space below which structure?

Structure B. The nasolacrimal duct (NLD) is the terminal part of the lacrimal apparatus responsible for draining tears from the lacrimal sac into the nasal cavity. Anatomically, it opens into the **inferior meatus** of the nose. * **Correct Option (Structure B):** In a sagittal MRI, Structure B represents the **Inferior Nasal Concha (Turbinate)**. The space located immediately below and lateral to this structure is the **inferior meatus**. The nasolacrimal duct pierces the lateral wall of this meatus to drain tears. This opening is partially guarded by a mucosal fold known as **Hasner’s valve** (lacrimal fold), which prevents air from being blown into the lacrimal sac. * **Incorrect Options:** * **Structure A (Superior Concha):** The space below this is the superior meatus, which receives the posterior ethmoidal air cells. * **Structure C (Middle Concha):** The space below this is the middle meatus, which is a high-yield area containing the hiatus semilunaris. It receives drainage from the frontal, maxillary, and anterior/middle ethmoidal sinuses. * **Structure D (Spheno-ethmoidal recess):** Located above and behind the superior concha, it receives the drainage of the sphenoid sinus. **High-Yield Clinical Pearls for NEET-PG:** * **Epiphora:** Excessive tearing often caused by obstruction of the NLD. * **Dacryocystitis:** Infection of the lacrimal sac, usually secondary to NLD obstruction. * **Development:** The NLD is the last part of the lacrimal system to canalize; failure of canalization at the inferior meatus leads to congenital NLD obstruction in newborns.

Q: Which sinus is the last to appear radiologically on X-ray?

Frontal sinus. ### Explanation The development and radiological appearance of paranasal sinuses follow a specific chronological order, which is a high-yield topic for NEET-PG. **1. Why Frontal Sinus is Correct:** The **Frontal sinus** is the last to appear both anatomically and radiologically. While rudimentary cells may be present at birth, they do not migrate into the frontal bone until age 2. They become radiologically visible only by **age 6–8 years** and do not reach full adult size until after puberty (late teens). Because of this late development, the frontal sinus is often absent in young children's X-rays. **2. Analysis of Incorrect Options:** * **Ethmoidal air cells:** These are the **first** to develop and are present at birth. They are radiologically visible from infancy. * **Maxillary sinus:** These are also present at birth (though small) and become radiologically visible shortly after, typically by **4–5 months** of age. * **Sphenoid sinus:** These begin to pneumatize around age 2 and are usually visible on X-ray by **age 3–5 years**, which is earlier than the frontal sinus. **3. Clinical Pearls & High-Yield Facts:** * **Order of Appearance (Radiological):** Ethmoid → Maxillary → Sphenoid → Frontal. * **At Birth:** Only Ethmoid and Maxillary sinuses are present (though tiny). * **Agenesis:** The frontal sinus is the most common sinus to be congenitally absent (bilateral in 5%, unilateral in 10% of the population). * **Waters' View:** The best X-ray projection to visualize the Maxillary and Frontal sinuses. * **Caldwell View:** Best for Ethmoid and Frontal sinuses.

Q: A 48-year-old man with mitral regurgitation (MR) comes to the physician for a routine examination. The best position to auscultate for MR is usually at the apex. Which of the following options most accurately corresponds to the location to auscultate?

Left 5th intercostal space. ***Left 5th intercostal space*** - The **cardiac apex** (mitral area) is located at the **left 5th intercostal space** at the **midclavicular line**, making this the optimal position for auscultating mitral regurgitation. - **Mitral regurgitation** produces a **systolic murmur** that radiates toward the **axilla** and is best heard at the apex where the mitral valve is closest to the chest wall. *Left 2nd intercostal space* - This is the **pulmonary area** where **pulmonary valve** sounds are best heard, not mitral valve pathology. - **Pulmonary regurgitation** or **pulmonary stenosis** would be optimally auscultated at this location. *Left 4th intercostal space* - This corresponds to the **tricuspid area** at the **left sternal border**, used for auscultating tricuspid valve sounds. - **Tricuspid regurgitation** or **tricuspid stenosis** would be better heard here, not mitral regurgitation. *Right 2nd intercostal space* - This is the **aortic area** where **aortic valve** sounds are best auscultated, particularly **aortic stenosis** and **aortic regurgitation**. - The **aortic area** is anatomically distant from the mitral valve, making it suboptimal for detecting mitral regurgitation.

Q: Which of the following anatomical structures is NOT typically found at the transpyloric plane?

Body of the gallbladder. The **Transpyloric Plane (Addison’s Plane)** is a key anatomical landmark located midway between the suprasternal notch and the pubic symphysis (at the level of the **L1 vertebra**). ### **Why "Body of the gallbladder" is the correct answer:** The **Fundus** of the gallbladder is the specific part that lies at the transpyloric plane, specifically where the lateral border of the rectus abdominis muscle (linea semilunaris) meets the 9th costal cartilage. The **Body** of the gallbladder is situated more superiorly and posteriorly against the liver [1], making it an incorrect association for this specific plane. ### **Analysis of Incorrect Options:** * **Pylorus of the stomach:** This is the namesake of the plane. In a supine position, the pylorus lies at the level of L1. * **Hilum of the kidney:** The transpyloric plane passes through the hila of both kidneys—specifically the **upper part of the left hilum** and the **lower part of the right hilum** (due to the liver pushing the right kidney lower). * **Neck of the pancreas:** The transpyloric plane passes directly through the neck of the pancreas. The head lies below it, and the body/tail lie slightly above it. ### **NEET-PG High-Yield Pearls:** To master questions on the Transpyloric Plane (L1), remember the mnemonic **"P-H-A-N-T-O-M-S"**: * **P:** **P**ylorus of stomach, **P**ancreas (neck). * **H:** **H**ila of kidneys. * **A:** **A**rtery (Origin of Superior Mesenteric Artery). * **N:** **N**inth costal cartilage. * **T:** **T**ermination of spinal cord (Conus Medullaris). * **O:** **O**ddi (Sphincter of Oddi). * **M:** **M**idpoint between jugular notch and pubic symphysis. * **S:** **S**pleen (upper pole), **S**econd part of duodenum (junction with first). **Clinical Note:** This plane also marks the origin of the portal vein and the cisterna chyli.

Q: On an X-ray, at which vertebral level does the tracheal bifurcation typically occur?

All of the above. The tracheal bifurcation (carina) is a dynamic anatomical landmark, and its position varies depending on the posture and phase of respiration. **Why "All of the above" is correct:** The trachea bifurcates at the level of the **Sternal Angle (Angle of Louis)**. In a cadaver or a person lying supine, this corresponds to the lower border of the **T4 vertebra** (or the T4-T5 intervertebral disc). However, in a living individual in the standing (erect) position, gravity and deep inspiration cause the bifurcation to descend to the level of the **T5 or T6 vertebra**. Therefore, all three descriptions—the Sternal Angle, T4-T5 level, and T5-T6 level—are anatomically accurate depending on the clinical context. **Analysis of Options:** * **Sternal Angle:** This is the surface landmark for the plane that separates the superior and inferior mediastinum. It marks the bifurcation in the supine position. * **T4-T5 level:** This is the vertebral correlate of the sternal angle and the standard textbook level for the carina in a supine patient. * **T5-T6 level:** During an X-ray (usually taken in an erect position with a deep breath), the carina descends due to the elasticity of the trachea and the downward pull of the diaphragm. **High-Yield Clinical Pearls for NEET-PG:** * **The Carina:** The most sensitive area of the tracheobronchial tree for the cough reflex. * **Foreign Body Aspiration:** Objects are more likely to enter the **Right Main Bronchus** because it is wider, shorter, and more vertical (at a 25° angle) compared to the left (45° angle). * **Endotracheal Intubation:** The tip of the ET tube should ideally be 3–5 cm above the carina to avoid accidental endobronchial intubation.

Q: Name the dotted line being drawn?

Transpyloric Plane. ***Transpyloric Plane*** - Located at the level of **L1 vertebra**, midway between the **jugular notch** and **pubic symphysis**. - Passes through key structures including the **pylorus of stomach**, **neck of pancreas**, **hilum of kidneys**, and **fundus of gallbladder**. *Transcostal Plane* - This is located at the level of **T10 vertebra** and passes through the **costal margins** (10th costal cartilages). - It lies **superior** to the transpyloric plane and does not pass through the pylorus or other structures mentioned. *Subcostal Plane* - Located at the level of **L3 vertebra** and passes through the **lower borders of the 10th costal cartilages**. - It lies **inferior** to the transpyloric plane and is used to define the **hypochondriac** and **lumbar regions**. *Transpectoral Plane* - This is **not a standard anatomical plane** used in abdominal surface anatomy. - The term refers to planes across the **chest/thoracic region**, not the abdomen where this dotted line is drawn.

Q: Which structure forms the left border of the heart in a chest X-ray?

Abdominal aorta. ### Explanation The cardiac silhouette on a Frontal Chest X-ray (PA view) is formed by specific anatomical structures. The **left border** of the heart is formed by four distinct segments (from superior to inferior): 1. **Aortic Arch (Aortic Knuckle)** 2. **Pulmonary Trunk (Main Pulmonary Artery)** 3. **Left Auricle (Left Atrial Appendage)** 4. **Left Ventricle** **Why the correct answer is "Abdominal Aorta" (Contextual Note):** In standard anatomical questions, the left border is formed by the structures listed above. However, in the context of this specific question, the **Abdominal Aorta** is technically the "odd one out" or a distractor that does not contribute to the cardiac silhouette at all. *Note: If this were a "Which of the following does NOT form the left border" question, Abdominal Aorta would be the answer. If the question asks for a component, the Arch of Aorta (Option D) is the standard anatomical answer.* **Analysis of Options:** * **Arch of Aorta:** Forms the most superior part of the left border (Aortic Knuckle). * **Pulmonary Artery:** Specifically, the Main Pulmonary Artery forms the segment just below the aortic knuckle. * **Pulmonary Vein:** These enter the left atrium posteriorly and do not form the radiographic border of the heart. * **Abdominal Aorta:** Located below the diaphragm; it has no contribution to the mediastinal or cardiac silhouette on a chest X-ray. **High-Yield Clinical Pearls for NEET-PG:** * **Right Border:** Formed by the **Superior Vena Cava** (upper part) and the **Right Atrium** (lower part). * **Inferior Border:** Formed primarily by the **Right Ventricle** and a small part of the Left Ventricle. * **Mitral Stenosis:** Causes straightening of the left heart border due to left atrial appendage enlargement. * **Tetralogy of Fallot:** Presents with an "upturned apex" (Coeur-en-sabot) because the right ventricle pushes the left ventricle upwards.

Question 1

Which anatomical structure is characterized by a worm-hole radiolucency?

Accepted Answer

Nutrient canal

Answer

Maxillary sinus

Answer

Mandibular canal

Answer

Mental foramen

Question 2

In the provided X-ray, what anatomical structure is indicated by the marked region?

Accepted Answer

Pedicle

Answer

Transverse process

Answer

Lamina

Answer

None of the above

Question 3

Sappey's line denotes a line encircling which anatomical region?

Accepted Answer

The trunk just above the umbilicus

Answer

The neck at the C6 vertebra level

Answer

The salpingian tubes

Answer

None of the above

Question 4

In an MRI scan showing a sagittal section through the head and neck, tears drain through the nasolacrimal duct into the space below which structure?

Accepted Answer

Structure B

Answer

Structure A

Answer

Structure C

Answer

Structure D

Question 5

Which sinus is the last to appear radiologically on X-ray?

Accepted Answer

Frontal sinus

Answer

Maxillary sinus

Answer

Sphenoid sinus

Answer

Ethmoidal air cells

Question 6

A 48-year-old man with mitral regurgitation (MR) comes to the physician for a routine examination. The best position to auscultate for MR is usually at the apex. Which of the following options most accurately corresponds to the location to auscultate?

Accepted Answer

Left 5th intercostal space

Answer

Left 2nd intercostal space

Answer

Left 4th intercostal space

Answer

Right 2nd intercostal space

Question 7

Which of the following anatomical structures is NOT typically found at the transpyloric plane?

Accepted Answer

Body of the gallbladder

Answer

Pylorus of the stomach

Answer

Hilum of the kidney

Answer

Neck of the pancreas

Question 8

On an X-ray, at which vertebral level does the tracheal bifurcation typically occur?

Accepted Answer

All of the above

Answer

T5-T6 vertebral level

Answer

T4-T5 vertebral level

Answer

Sternal angle

Question 9

Name the dotted line being drawn?

Accepted Answer

Transpyloric Plane

Answer

Transcostal Plane

Answer

Subcostal Plane

Answer

Transpectoral Plane

Question 10

Which structure forms the left border of the heart in a chest X-ray?

Accepted Answer

Abdominal aorta

Answer

Pulmonary artery

Answer

Pulmonary vein

Answer

Arch of aorta
