Anesthetic Equipment and Monitoring Practice Questions

Q: Which of the following may result in a sudden increase in end-tidal carbon dioxide (ETCO2)?

All of the above. **Explanation:** The core physiological concept behind a sudden increase in **End-Tidal Carbon Dioxide (ETCO2)** is an increase in **metabolic CO2 production**, a decrease in alveolar ventilation, or a sudden increase in cardiac output/pulmonary blood flow. In this question, all options represent hypermetabolic states that lead to increased CO2 production. 1. **Malignant Hyperthermia (MH):** This is a life-threatening pharmacogenetic hypermetabolic crisis triggered by volatile anesthetics or succinylcholine. A **sudden, dramatic rise in ETCO2** is often the **earliest and most sensitive sign** of MH, occurring even before the rise in body temperature. 2. **Hyperthyroidism (Thyroid Storm):** Excess thyroid hormones increase the basal metabolic rate (BMR) across all tissues. During anesthesia, an undiagnosed or poorly controlled hyperthyroid patient can experience a surge in CO2 production due to this accelerated metabolism. 3. **Shivering:** Shivering involves rapid, involuntary muscle contractions to generate heat. This intense muscular activity significantly increases oxygen consumption and CO2 production (up to 200-400%), leading to an elevation in ETCO2. **Clinical Pearls for NEET-PG:** * **Differential Diagnosis of High ETCO2:** Always consider **Hypoventilation** (most common), **Sepsis**, **Tourniquet release**, and **Bicarbonate administration** in addition to the hypermetabolic states mentioned above. * **Sudden Drop in ETCO2:** Conversely, a sudden drop in ETCO2 is a high-yield indicator of **Pulmonary Embolism**, **Cardiac Arrest**, or **Circuit Disconnection**. * **Gold Standard:** ETCO2 is the gold standard for confirming endotracheal tube placement.

Q: What is the normal Central Venous Pressure (CVP)?

2-6 cm H2O. **Explanation:** **Central Venous Pressure (CVP)** is the pressure measured in the superior vena cava near the right atrium. It serves as a clinical surrogate for right ventricular end-diastolic pressure and is a key indicator of intravascular volume status and right heart function. 1. **Why Option B is Correct:** The physiological range for CVP in a healthy, spontaneously breathing individual is **2–6 mmHg** (or approximately 5–10 cm H₂O). In the context of standard medical examinations like NEET-PG, **2–6 mmHg** is the most frequently cited "normal" range. It represents a state where there is adequate venous return without fluid overload or right heart failure. 2. **Analysis of Incorrect Options:** * **Option A (0-3 cm H₂O):** This range is too low. A CVP consistently below 2 mmHg typically indicates **hypovolemia** (dehydration or hemorrhage) or excessive peripheral vasodilation (e.g., distributive shock). * **Option C (12-15 cm H₂O):** This is elevated. High CVP suggests **hypervolemia** (fluid overload), right-sided heart failure, cardiac tamponade, or pulmonary hypertension. * **Option D (>20 cm H₂O):** This represents severe pathological elevation, often seen in acute heart failure or severe tension pneumothorax, and carries a risk of systemic venous congestion. **High-Yield Clinical Pearls for NEET-PG:** * **Reference Point:** The zero level for CVP measurement is the **phlebostatic axis** (4th intercostal space, mid-axillary line). * **Conversion:** Remember that **1 mmHg = 1.36 cm H₂O**. If the question asks for cm H₂O, the normal range is roughly **5–10 cm H₂O**. * **Waveforms:** The CVP waveform has three positive waves: **'a'** (atrial contraction), **'c'** (tricuspid bulging), and **'v'** (venous filling). * **Clinical Use:** In urological surgery (like TURP or major renal surgery), CVP monitoring is vital to prevent fluid overload and monitor for "TURP Syndrome."

Q: A 60-year-old female patient underwent modified radical mastectomy under general anesthesia. She is very anxious preoperatively. What monitor might the anesthetist have used during surgery to ensure she does not recall intraoperative events?

Bispectral index. **Explanation:** The correct answer is **Bispectral Index (BIS)**. **1. Why Bispectral Index (BIS) is correct:** BIS is a processed EEG parameter used to monitor the **depth of anesthesia**. It converts complex EEG signals into a single dimensionless number ranging from **0 (isoelectric/brain death) to 100 (fully awake)**. For general anesthesia, the target range is typically **40–60**. Maintaining this range ensures adequate hypnosis and significantly reduces the risk of **intraoperative awareness** (recall of events), which is a major concern in anxious patients or high-risk surgeries. **2. Why other options are incorrect:** * **Color Doppler:** This is an ultrasound modality used to visualize blood flow and vascularity. It has no role in monitoring the level of consciousness or depth of anesthesia. * **End-tidal CO2 (EtCO2):** This monitors ventilation, cardiac output, and the integrity of the breathing circuit (capnography). While vital for safety, it does not measure the hypnotic state of the brain. * **Evoked Potentials:** These (e.g., SSEP, MEP) are used to monitor the integrity of neural pathways during spinal or neurosurgery. While they can be affected by anesthetic depth, they are not the standard tool for preventing awareness. **3. High-Yield Clinical Pearls for NEET-PG:** * **BIS Range 40–60:** Optimal for General Anesthesia. * **BIS > 70:** Increased risk of conscious recall. * **BIS < 40:** Represents deep hypnosis; may lead to post-operative delirium or delayed emergence. * **Other Depth Monitors:** Entropy (State and Response) and Patient State Index (PSI). * **Isolated Forearm Technique:** The "Gold Standard" (though clinically cumbersome) for detecting intraoperative awareness.

Q: What is the diameter and length of the component marked with an arrow?

2 mm and <1 cm. ***2 mm and <1 cm*** - The **Murphy eye** is a small oval-shaped aperture located near the **bevel** of the endotracheal tube with a standard diameter of **2 mm** and length of **less than 1 cm**. - This precise sizing ensures adequate **ventilation backup** while maintaining the structural integrity of the **ETT tip**. *3 mm and 2 cm* - The diameter of **3 mm** would be too large for a Murphy eye, potentially weakening the **tube structure** excessively. - A length of **2 cm** is significantly longer than the actual Murphy eye dimensions, which could compromise **tube flexibility**. *2 cm and 3 mm* - A diameter of **2 cm** is vastly oversized compared to the actual **Murphy eye**, which would create a massive structural defect. - This combination reverses the actual measurements and would render the **endotracheal tube** functionally unusable. *4 mm and <1 cm* - A **4 mm diameter** is twice the actual size of the Murphy eye, creating an unnecessarily large opening. - This oversized aperture could lead to **air leakage** and reduced ventilation efficiency during mechanical ventilation.

Q: Which pattern of capnograph is indicative of endotracheal tube obstruction?

Endotracheal tube obstruction. **Explanation:** **1. Why Endotracheal Tube (ETT) Obstruction is Correct:** In capnography, the **Phase III (Alveolar Plateau)** represents the exhalation of alveolar gas. When there is an obstruction in the ETT (due to kinking, secretions, or a foreign body), the resistance to expiratory gas flow increases. This results in a **prolonged, steepened upward slope of Phase III** (increased alpha angle). Because the gas takes longer to exit the lungs through the narrowed lumen, the waveform appears "stretched" or slanted rather than flat. **2. Analysis of Incorrect Options:** * **A. Spontaneous Breathing:** This typically manifests as a **"Curare Cleft"**—a dip in the Phase III plateau. It indicates that the patient is attempting to breathe against the ventilator as the neuromuscular blockade wears off. * **C. Malignant Hyperthermia:** This is characterized by a **rapid, progressive increase in End-Tidal CO2 (EtCO2)** levels while maintaining a normal waveform shape. It reflects a hypermetabolic state and is often the earliest sign of MH. * **D. Unidirectional Valve Malfunction:** An inspiratory valve fault leads to rebreathing, which causes the **baseline (Phase IV/0) to rise above zero**, as the patient inhales CO2-containing gas from the expiratory limb. **3. Clinical Pearls for NEET-PG:** * **Shark-fin appearance:** This is the classic description for obstructive patterns (Asthma, COPD, or ETT kink). * **Sudden drop of EtCO2 to zero:** Think of ETT disconnection, total circuit obstruction, or esophageal intubation. * **Sudden decrease (but not to zero):** Think of Pulmonary Embolism or a sudden drop in Cardiac Output. * **Normal EtCO2 range:** 35–45 mmHg.

Q: Ayer's T Piece is classified as which of the following Mapelson circuits?

Mapelson E circuit. **Explanation:** The classification of breathing systems by **Mapelson (1954)** is based on the arrangement of components (fresh gas flow, reservoir bag, and expiratory valve). **Why Option D is Correct:** **Ayre’s T-piece** is the classic example of a **Mapelson E** circuit. It is a simple, valveless system consisting of a T-shaped tube where one limb receives fresh gas flow (FGF), one connects to the patient’s airway, and the third limb acts as an open reservoir tube. Because it has **no reservoir bag** and **no APL (Adjustable Pressure Limiting) valve**, it offers minimal resistance, making it the circuit of choice for spontaneous ventilation in neonates and pediatric patients weighing less than 20 kg. **Why Other Options are Incorrect:** * **Mapelson A (Magill’s):** Contains a reservoir bag at the machine end and a valve at the patient end. It is the most efficient for spontaneous respiration but inefficient for controlled ventilation. * **Mapelson B & C:** These involve the FGF entering near the patient; they are rarely used in modern practice. * **Mapelson D:** The most common version is the **Bain’s circuit** (a coaxial system). Unlike the T-piece, it contains a reservoir bag and an APL valve, making it efficient for controlled ventilation. **Clinical Pearls for NEET-PG:** * **Jackson-Rees Modification:** When a reservoir bag with an open tail is added to the expiratory limb of a Mapelson E, it becomes a **Mapelson F**. * **Efficiency Order (Spontaneous):** A > D > C > B (Mnemonic: **"All Dogs Can Bite"**). * **Efficiency Order (Controlled):** D > B > C > A (Mnemonic: **"Dog Bites Can Ache"**). * **Dead Space:** Ayre’s T-piece has minimal dead space, which is critical for pediatric anesthesia to prevent CO2 rebreathing.

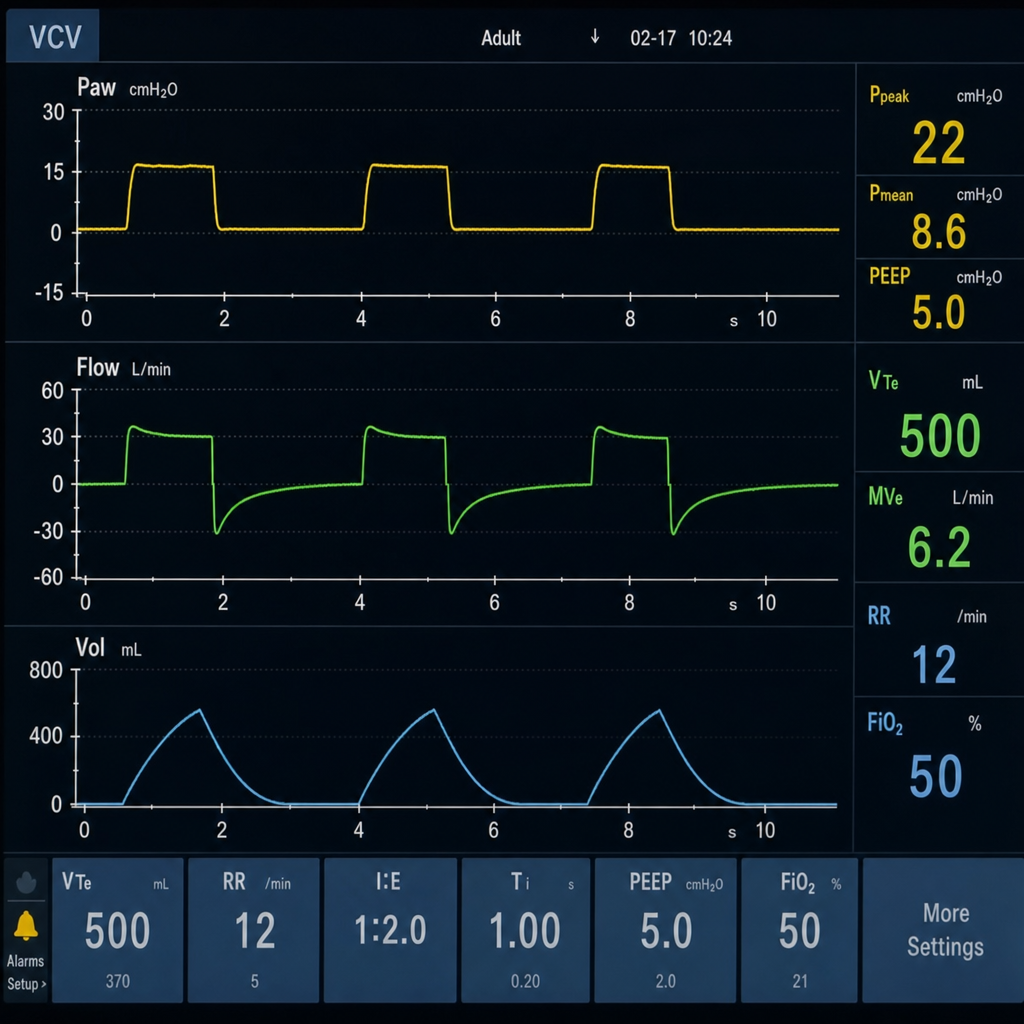

Q: This type of flow-time graph is typically observed in which mechanical ventilator mode?

Volume Control Ventilation (VCV). ***Volume Control Ventilation (VCV)*** - Produces a characteristic **square wave** or **constant flow pattern** on flow-time graphs due to predetermined **tidal volume** delivery at a fixed flow rate. - The **inspiratory flow** remains constant throughout inspiration, creating the distinctive rectangular waveform that differentiates it from other modes. *Pressure Control Ventilation (PCV)* - Creates a **decelerating flow pattern** where flow starts high and gradually decreases as lung pressure equilibrates with set pressure. - The flow-time waveform shows an **exponential decay curve**, not the square wave pattern described. *Pressure Support Ventilation (PSV)* - Generates a **variable decelerating flow** that depends on patient effort and respiratory mechanics, creating an irregular waveform. - Flow pattern is **patient-triggered** and shows gradual tapering, unlike the constant flow of VCV. *Continuous Positive Airway Pressure (CPAP)* - Produces **spontaneous breathing patterns** with variable, irregular flow based entirely on patient respiratory effort. - Shows **biphasic flow** (positive during inspiration, negative during expiration) without the controlled, constant flow characteristic of VCV.

Q: Which size cannula is typically used for massive bleeding during surgery?

16 G. **Explanation:** The choice of intravenous (IV) cannula size in clinical practice is governed by **Poiseuille’s Law**, which states that the flow rate of a fluid is directly proportional to the fourth power of the radius of the tube ($Q \propto r^4$) and inversely proportional to its length. Therefore, a larger internal diameter (smaller gauge number) and a shorter length allow for the fastest administration of fluids and blood products. * **16 G (Grey):** This is a large-bore cannula capable of high flow rates (approx. 180–200 mL/min). It is the standard choice for **major surgeries, trauma, and massive hemorrhage** where rapid volume replacement is critical to maintain hemodynamic stability. * **20 G (Pink):** This is the most common "universal" size used for routine IV maintenance and blood transfusions in stable patients. However, its flow rate (approx. 60 mL/min) is insufficient for "massive" bleeding. * **22 G (Blue):** Primarily used for older patients with fragile veins or pediatric patients. It is too narrow for rapid resuscitation. * **24 G (Yellow):** Used mainly in neonates and pediatrics. High resistance makes it unsuitable for rapid fluid boluses. **High-Yield Clinical Pearls for NEET-PG:** * **The "Ideal" Resuscitation Cannula:** While 16 G is the standard answer, the **14 G (Orange)** cannula provides the maximum flow rate (up to 300 mL/min) and is preferred in ER/Trauma settings if the vein allows. * **Flow & Length:** A short, wide peripheral cannula (e.g., 14G or 16G) often provides faster flow than a long, narrow Triple Lumen Central Venous Catheter. * **Color Coding Memory Aid:** * 14G: Orange (Fire - Urgent) * 16G: Grey (Stone - Solid/Major) * 18G: Green (Go - Blood transfusion) * 20G: Pink (Routine)

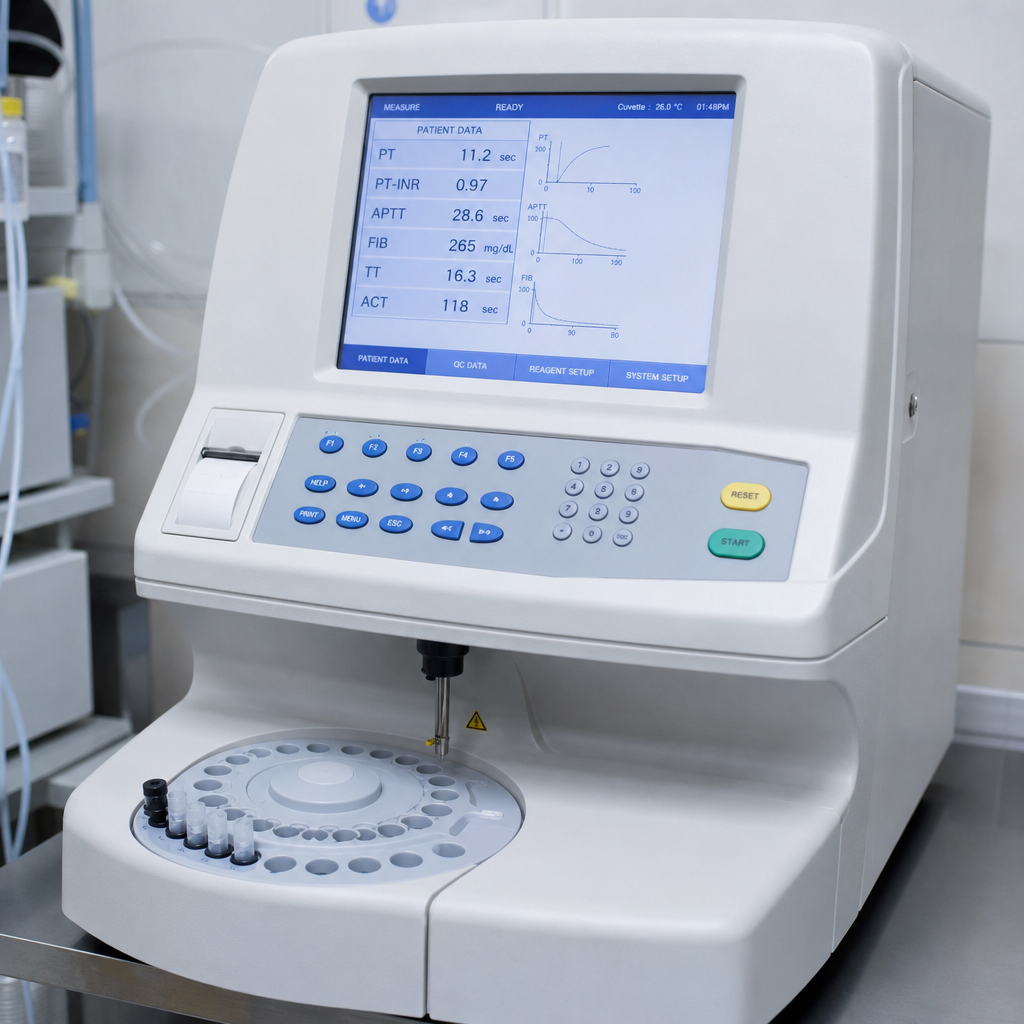

Q: A machine used during liver transplant is shown in the image. What is its primary use?

To measure coagulation profile. ***To measure coagulation profile*** - This machine is a **TEG (Thromboelastography)** or **ROTEM** device, specifically designed to assess **real-time coagulation status** during liver transplant surgery. - Critical for monitoring **clotting function** in liver transplant patients who often have severe **coagulopathy** due to impaired hepatic synthesis of clotting factors. *To measure hemoglobin percentage* - **Hemoglobin measurement** is performed using **co-oximetry** or **hemoglobin analyzers**, not the device shown in the image. - While hemoglobin monitoring is important during surgery, it doesn't require the specialized **viscoelastic testing** capability of TEG/ROTEM. *To measure cell count* - **Cell counting** is done using **hematology analyzers** with flow cytometry or electrical impedance methods. - The machine shown is specifically designed for **coagulation assessment**, not for counting **red blood cells**, **white blood cells**, or **platelets**. *All the above* - The device shown has a **specialized function** limited to **coagulation profile assessment** through viscoelastic testing. - It cannot perform **hemoglobin measurement** or **cell counting**, which require different technological approaches and analyzer types.

Question 1

Which of the following may result in a sudden increase in end-tidal carbon dioxide (ETCO2)?

Accepted Answer

All of the above

Answer

Malignant Hyperthermia

Answer

Hyperthyroidism

Answer

Shivering

Question 2

What is the normal Central Venous Pressure (CVP)?

Accepted Answer

2-6 cm H2O

Answer

0-3 cm H2O

Answer

12-15 cm H2O

Answer

>20 cm H2O

Question 3

A 60-year-old female patient underwent modified radical mastectomy under general anesthesia. She is very anxious preoperatively. What monitor might the anesthetist have used during surgery to ensure she does not recall intraoperative events?

Accepted Answer

Bispectral index

Answer

Color doppler

Answer

End-tidal CO2

Answer

Evoked potentials

Question 4

What is the diameter and length of the component marked with an arrow?

Accepted Answer

2 mm and <1 cm

Answer

3 mm and 2 cm

Answer

2 cm and 3 mm

Answer

4 mm and <1 cm

Question 5

Which pattern of capnograph is indicative of endotracheal tube obstruction?

Accepted Answer

Endotracheal tube obstruction

Answer

Spontaneous breathing

Answer

Malignant hyperthermia

Answer

Unidirectional valve malfunction

Question 6

Ayer's T Piece is classified as which of the following Mapelson circuits?

Accepted Answer

Mapelson E circuit

Answer

Mapelson A circuit

Answer

Mapelson B circuit

Answer

Mapelson D circuit

Question 7

This type of flow-time graph is typically observed in which mechanical ventilator mode?

Accepted Answer

Volume Control Ventilation (VCV)

Answer

Pressure Control Ventilation (PCV)

Answer

Pressure Support Ventilation (PSV)

Answer

Continuous Positive Airway Pressure (CPAP)

Question 8

Which size cannula is typically used for massive bleeding during surgery?

Accepted Answer

16 G

Answer

20 G

Answer

22 G

Answer

24 G

Question 9

A machine used during liver transplant is shown in the image. What is its primary use?

Accepted Answer

To measure coagulation profile

Answer

To measure hemoglobin percentage

Answer

To measure cell count

Answer

All the above

Question 10

Most anesthetic drugs are detectable by entropy monitoring, except:

Accepted Answer

Nitrous oxide

Answer

Isoflurane

Answer

Halothane

Answer

Sevoflurane
