Anesthetic Equipment and Monitoring Practice Questions

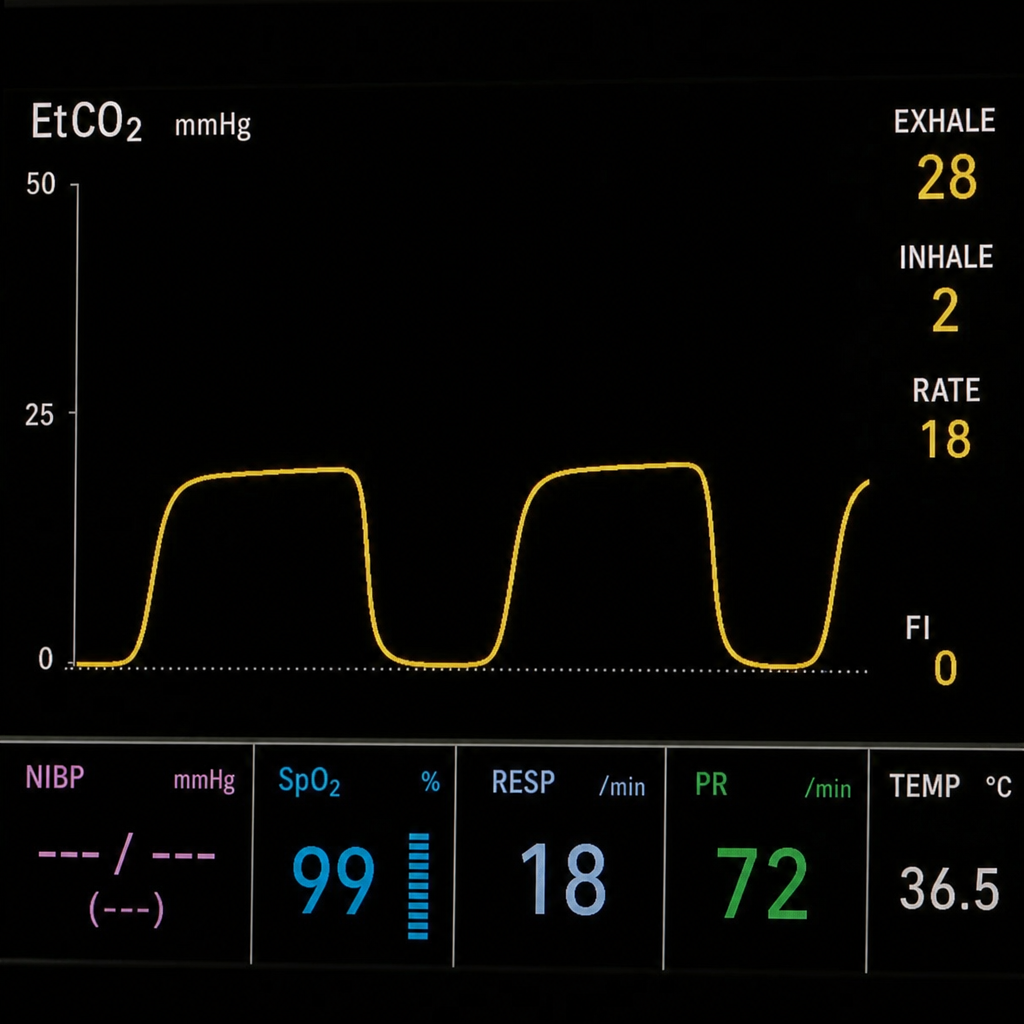

Q: What does the image of the Capnograph depict?

Spontaneous respiration. ***Spontaneous respiration*** - The capnograph shows a normal pattern consistent with **spontaneous respiration**, characterized by a clear inspiratory downstroke to zero CO2 and a plateau during expiration. - The distinct phases of **inspiration and expiration are clearly demarcated**, indicating natural breathing without mechanical ventilation. *Inspiration phase* - The **inspiration phase** on a capnograph is represented by the sharp downstroke to the baseline, indicating the intake of CO2-free air. - This option only describes a single part of the overall breathing cycle, not the complete pattern shown. *Inspiration with cardiac oscillations* - While cardiac oscillations can sometimes be seen as small undulations on the expiratory plateau, they are not the primary feature depicted as **inspiration with cardiac oscillations**. - The main pattern shown is a clear, regular respiratory cycle, not specifically highlighting cardiac influence. *Expiration phase* - The **expiration phase** is depicted by the rising CO2 content and the subsequent plateau before the next inspiration. - This option only describes the segment during which CO2 is exhaled, not the entire rhythmic breathing cycle.

Q: Murphy's eye is seen in -

Endotracheal tube. ***Endotracheal tube*** - A Murphy's eye is a **hole on the side** of the endotracheal tube, near the distal tip, opposite the main bevel. - Its purpose is to provide an **alternative pathway for gas flow** if the main opening of the tube becomes occluded by secretions or contact with the tracheal wall. *Flexible laryngoscope* - This device is used for **visualizing the airway** and guiding endotracheal tube placement, not for maintaining it. - It does not have a Murphy's eye as it is a diagnostic/guiding tool, not a conduit for ventilation. *Laryngeal Mask Airway (LMA)* - An LMA is a **supraglottic airway device** that creates a seal around the laryngeal inlet. - It does not have a Murphy's eye as its design doesn't involve intralaryngeal distal tip placement where occlusion by the tracheal wall is a primary concern. *Macintosh laryngoscope* - This is a type of **laryngoscope blade** used to visualize the vocal cords during intubation. - It is an instrument for intubation, not the airway device itself, and therefore does not have a Murphy's eye.

Q: What is the primary use of the Mapleson E anesthesia circuit?

Spontaneous ventilation. ***Spontaneous ventilation*** - The Mapleson E circuit, also known as the **Ayre's T-piece**, is commonly used for **spontaneous ventilation** due to its low resistance and efficient CO2 elimination during adequate breathing. - Its design, featuring a gas inlet and an open-ended reservoir tube, allows for effective scavenging of exhaled gases with minimal rebreathing in spontaneously breathing patients. *Controlled ventilation* - While it can be adapted for controlled ventilation with some modifications (e.g., adding a bag), the Mapleson E circuit is primarily designed and most efficient for **spontaneous breathing**, not controlled positive pressure ventilation. - More complex circuits like the **Mapleson D** (Bain system) or modern circle systems are generally preferred for controlled ventilation due to better gas conservation and controlled CO2 removal. *Children* - While the Mapleson E circuit is **often used in children**, particularly infants, due to its low dead space and resistance, this is a specific application rather than its primary *use*. - Its design is well-suited for the small tidal volumes and rapid respiratory rates of pediatric patients, but its fundamental function remains in facilitating spontaneous breathing. *All of the options* - While the Mapleson E circuit finds application in **children** and can be adapted for **controlled ventilation** in specific scenarios, its **primary design and most efficient use are for spontaneous ventilation**. - Attributing its primary use to "all of the options" oversimplifies its core function and optimal performance characteristics.

Q: What is the primary purpose of the Pin Index System in anesthesia machines?

Incorrect attachment of gas cylinders. ***Incorrect attachment of gas cylinders*** - The **Pin Index Safety System** is a crucial safety feature on anesthesia machines designed to prevent the accidental interchanging of gas cylinders. - It uses a **specific pattern of pins** on the yoke assembly that must align with corresponding holes on the gas cylinder valve, ensuring that only the correct gas cylinder can be attached. *Incorrect attachment of non-gas equipment* - The Pin Index System is exclusively for **gas cylinders** and does not apply to non-gas equipment, which has its own connection standards. - Non-gas equipment typically includes items like intravenous lines, monitoring cables, or suction apparatus, which use different connection mechanisms. *Incorrect attachment of anesthesia gas masks* - Anesthesia gas masks connect to the breathing circuit via **standardized connectors** (e.g., 22 mm conical), not the Pin Index System. - The Pin Index System is implemented upstream at the **gas supply source** to the machine. *Incorrect delivery of inhalation agents* - The Pin Index System addresses cylinder attachment; the prevention of incorrect delivery of inhalation agents is primarily handled by the **vaporizer interlock system**. - Vaporizers are responsible for precise delivery of agents, and their safety features prevent simultaneous activation or incorrect concentration settings.

Q: Which of the following systems is specifically designed to produce Positive End-Expiratory Pressure (PEEP) in mechanical ventilation?

PEEP valve system. ***PEEP valve system*** - A **PEEP valve** is a specific component designed to maintain a positive pressure in the airways at the end of exhalation. - This prevents **alveolar collapse** and improves oxygenation, which is its primary function in mechanical ventilation. *Mechanical spring system for ventilation* - While springs can be used in some mechanical systems, they are not the primary or exclusive mechanism for generating and maintaining **PEEP** in ventilators. - Spring-loaded valves might contribute to some pressure regulation, but the dedicated PEEP valve is more precise and common. *Balloon valve system for ventilation* - A balloon valve system is not a standard design for generating or regulating **PEEP** in mechanical ventilation. - Such a system is not typically described in the context of advanced ventilator mechanics. *Pneumatic pressure system for ventilation* - While mechanical ventilation relies on a pneumatic (gas-driven) system, this term is too broad and does not specifically identify the component responsible for generating **PEEP**. - The pneumatic system delivers the gas, but the PEEP valve specifically regulates the pressure at the end of expiration.

Q: What does the acronym DISS stand for in the context of medical gas supply?

Diameter Index Safety System. ***Diameter Index Safety System*** - **DISS** stands for **Diameter Index Safety System**, which is a standard for **medical gas connections** designed to prevent misconnections. - It uses specific **diameters and thread sizes** for different gases, ensuring that a hose for one gas cannot be connected to an outlet for another. *To provide safe gas delivery* - While DISS aims to provide **safe gas delivery**, this answer describes the *purpose* rather than the full acronym. - The name itself refers to the **mechanical indexing** that ensures safety, not just the general goal. *To monitor blood pressure* - This option is **unrelated** to the function of DISS. - **Blood pressure monitoring** uses entirely different medical devices and principles. *To monitor central venous pressure* - This function is also **irrelevant** to DISS. - **Central venous pressure monitoring** involves catheters and transducers, not gas supply connections.

Q: What is the pressure at which oxygen is stored?

2200 psi. ***2200 psi*** - Medical oxygen is typically stored in cylinders under high pressure, usually around **2200 pounds per square inch (psi)**, to facilitate transport and delivery of a significant volume of gas in a relatively small container. - This high pressure allows for a large quantity of **gaseous oxygen** to be compressed, which then flows at a much lower, regulated pressure for patient use. *75 psi* - This pressure is significantly lower than the storage pressure for oxygen and would not allow for effective storage of a clinically relevant volume of oxygen in standard cylinders. - Pressures in this range might be found in gas lines after reduction or for specialized low-flow applications, but not for cylinder storage. *1600 psi* - While a high pressure, **1600 psi** is generally not the standard storage pressure for medical oxygen tanks. - Tanks categorized as high-pressure typically start at pressures higher than this, with 2200 psi being a common and accepted standard for full tanks. *760 psi* - This pressure is much too low for the efficient storage of medical oxygen in cylinders. - **760 mmHg** is the standard atmospheric pressure at sea level, which is a unit of pressure, not a storage pressure for compressed gases like oxygen.

Q: Which gas is commonly used in the medical field for rapid inflation of devices such as air embolism balloons?

Nitrogen gas. ***Nitrogen gas*** - **Nitrogen gas** is commonly used in medical devices like **air embolism balloons** due to its **inertness** and ability to provide rapid, controlled inflation. - Its **low solubility in blood** is advantageous as it minimizes the risk of systemic gas embolism if the balloon ruptures within the body. *Sodium azide* - **Sodium azide** is a highly toxic compound and is primarily used in **automotive airbags** due to its rapid decomposition into nitrogen gas upon ignition. - It is **not suitable for direct medical inflation** due to its inherent toxicity and the extreme heat generated during its reaction. *Carbon dioxide* - **Carbon dioxide** is readily soluble in blood and rapidly diffuses across membranes, making it unsuitable for applications requiring sustained, controlled inflation within the body or for **air embolism balloons**. - It is used in procedures like **laparoscopy** for insufflation, where its rapid absorption is a desired characteristic to prevent gas accumulation post-procedure. *Helium* - **Helium** is very soluble in blood and would quickly diffuse out of a balloon, thus making it unsuitable for sustained inflation in an air embolism balloon. - It is sometimes used in specific medical applications for its **low density**, such as in respiratory support for patients with severe airway obstruction, but not for rapid, persistent inflation of devices.

Q: The image given below shows neuromuscular monitoring of the patient after anesthesia. What is the most commonly used nerve for monitoring?

Ulnar nerve. ***Ulnar nerve*** - The **ulnar nerve** is the most commonly chosen site for neuromuscular monitoring due to its ease of accessibility and predictable response of the **adductor pollicis muscle**. - Stimulation of the ulnar nerve at the wrist causes **adduction of the thumb**, which is easily quantifiable and provides reliable information about neuromuscular blockade. *Median nerve* - While the median nerve can be monitored, it is **less commonly used** than the ulnar nerve due to potential for confusing responses or less clear twitch measurements. - Stimulation of the median nerve primarily leads to **flexion of the thumb and fingers**, but the adductor pollicis response from ulnar nerve stimulation is often preferred for its clear isolation. *Radial nerve* - The radial nerve innervates muscles involved in **wrist and finger extension**, which are not typically targeted for standard neuromuscular monitoring. - Its stimulation can be more complex to interpret and may not provide the precise information needed for monitoring paralytic depth in the same way as the ulnar nerve. *Metacarpal nerve* - The term "metacarpal nerve" is broad and refers to nerves near the metacarpals, which are **not primary sites** for direct neuromuscular blocking agent monitoring. - Specific named peripheral nerves like the ulnar, median, or radial nerves are targeted for their predictable muscle responses, not generalized metacarpal innervation.

Q: What does the image of the Capnograph depict?

Capnograph indicating spontaneous respiration. ***Capnograph indicating spontaneous respiration*** - The characteristic dip in the **EtCO2 waveform** during the plateau phase (phaselll) is indicative of a breath taken by the individual which is a classic finding of **spontaneous respiration**. This dip is because when a patient takes a breath in, fresh gas with no CO2 is pulled into the sampling line momentarily decreasing the measured CO2. - This pattern is often referred to as a "**curare cleft**" or "**respiratory indentation**," and it signifies incomplete paralysis or return of spontaneous breathing. *Capnograph during inspiration* - During normal inspiration, there is no CO2 in the inhaled air, so the capnograph reading would theoretically drop to **zero** or near-zero, not exhibit a waveform with a plateau. - The baseline of the capnograph reflects inspiration, which should be flat (zero CO2). *Capnograph showing inspiration with cardiac oscillations* - Cardiac oscillations typically appear as **small rhythmic fluctuations** on the baseline or the expiratory plateau, synchronized with the heartbeat. - These oscillations are usually much smaller and do not present as distinct, sharp dips within the expiratory plateau as seen in the image. *Capnograph during expiration* - During a normal expiration, the capnograph waveform rises from a baseline of zero (phase I, **dead space ventilation**) to a plateau (phase III, **alveolar gas emptying**) with a peak value, before returning to baseline during inspiration. - While the image shows expiration with a plateau, the key feature of the dip during the plateau is more specific to spontaneous respiration than just general expiration.

Question 1

What does the image of the Capnograph depict?

Accepted Answer

Spontaneous respiration

Answer

Inspiration phase

Answer

Inspiration with cardiac oscillations

Answer

Expiration phase

Question 2

Murphy's eye is seen in -

Accepted Answer

Endotracheal tube

Answer

Flexible laryngoscope

Answer

Laryngeal Mask Airway (LMA)

Answer

Macintosh laryngoscope

Question 3

What is the primary use of the Mapleson E anesthesia circuit?

Accepted Answer

Spontaneous ventilation

Answer

Controlled ventilation

Answer

Children

Answer

All of the options

Question 4

What is the primary purpose of the Pin Index System in anesthesia machines?

Accepted Answer

Incorrect attachment of gas cylinders

Answer

Incorrect attachment of non-gas equipment

Answer

Incorrect attachment of anesthesia gas masks

Answer

Incorrect delivery of inhalation agents

Question 5

Which of the following systems is specifically designed to produce Positive End-Expiratory Pressure (PEEP) in mechanical ventilation?

Accepted Answer

PEEP valve system

Answer

Mechanical spring system for ventilation

Answer

Balloon valve system for ventilation

Answer

Pneumatic pressure system for ventilation

Question 6

What does the acronym DISS stand for in the context of medical gas supply?

Accepted Answer

Diameter Index Safety System

Answer

To provide safe gas delivery

Answer

To monitor blood pressure

Answer

To monitor central venous pressure

Question 7

What is the pressure at which oxygen is stored?

Accepted Answer

2200 psi

Answer

75 psi

Answer

1600 psi

Answer

760 psi

Question 8

Which gas is commonly used in the medical field for rapid inflation of devices such as air embolism balloons?

Accepted Answer

Nitrogen gas

Answer

Sodium azide

Answer

Carbon dioxide

Answer

Helium

Question 9

The image given below shows neuromuscular monitoring of the patient after anesthesia. What is the most commonly used nerve for monitoring?

Accepted Answer

Ulnar nerve

Answer

Median nerve

Answer

Radial nerve

Answer

Metacarpal nerve

Question 10

What does the image of the Capnograph depict?

Accepted Answer

Capnograph indicating spontaneous respiration

Answer

Capnograph during inspiration

Answer

Capnograph showing inspiration with cardiac oscillations

Answer

Capnograph during expiration
