Anesthetic Equipment and Monitoring Practice Questions

Q: The capnography image shows:

Curare cleft. ***Curare cleft*** - The capnography waveform shows a **dip or cleft** during the expiratory plateau, which is characteristic of a 'curare cleft.' - This pattern occurs when the effect of **muscle relaxants (like curare)** is wearing off, and the patient attempts to breathe spontaneously, causing a transient decrease in CO2 exhalation. *Sudden extubation* - Sudden extubation would typically result in an **immediate and complete loss of the capnography waveform**, as there would be no CO2 reaching the sensor. - The image clearly displays repetitive, though altered, CO2 waveforms, indicating the patient is still intubated and ventilating. *Bronchospasm* - Bronchospasm is characterized by a **prolonged, upsloping phase three** (alpha angle) due to obstructed airflow, and often an **increased end-tidal CO2** (EtCO2) as CO2 clearance is impaired. - The waveform in the image does not show a prolonged upsloping phase or significantly increased EtCO2, but rather a distinct dip during the plateau. *Hypothermia* - Hypothermia generally causes a **decrease in EtCO2** due to reduced metabolic rate and CO2 production. - While it affects CO2 levels, it typically presents as a **lowered overall baseline** EtCO2, not a specific cleft within the expiratory plateau of individual breaths.

Q: What is the next best step in patient with the following capnography tracing?

Give skeletal muscle relaxant. ***Give skeletal muscle relaxant*** - The capnography shows a **curare cleft** (notch in the expiratory plateau/Phase III), which is pathognomonic for **wearing off of neuromuscular blockade** when the patient makes spontaneous inspiratory efforts against the ventilator. - The immediate next step is to **re-dose the neuromuscular blocking agent** to restore complete muscle relaxation and prevent patient-ventilator dyssynchrony. *Check for position of endotracheal tube* - While ETT malposition can cause respiratory issues, the **curare cleft pattern** is specifically diagnostic of **incomplete neuromuscular blockade**, not airway obstruction. - ETT displacement would typically show **absent or diminished waveforms** rather than the characteristic notching in Phase III seen with spontaneous breathing efforts. *Check for connections of anesthesia machine* - Machine connection problems would manifest as **complete loss of waveform** or grossly abnormal capnography patterns, not the specific curare cleft. - The **intact waveform with characteristic notching** indicates the circuit is connected and functioning, ruling out connection issues. *Change the soda lime canister* - Exhausted soda lime causes **elevated baseline CO2** (non-zero inspiratory CO2) and rising end-tidal CO2 values due to **CO2 rebreathing**. - This capnography shows a **normal baseline** with characteristic Phase III notching, making soda lime exhaustion an incorrect diagnosis.

Q: What does the following capnographic recording represent?

Asthma. ***Asthma*** - The capnographic tracing shows a characteristic **shark fin waveform**, indicative of **expiratory airflow obstruction**. - This waveform is generated due to uneven emptying of the alveoli, where CO2 continues to be exhaled at a reduced rate during the later phase of expiration. *Spontaneous extubation* - Spontaneous extubation would typically result in a **complete loss of the capnography waveform** due to disconnection from the airway. - The tracing shown still clearly depicts expired CO2, inconsistent with complete extubation. *Raised ICT* - Raised intracranial tension (ICT) can affect breathing patterns (e.g., Cheyne-Stokes, hyperventilation), but it does not directly produce a a **shark fin capnography waveform**. - Capnography reflects CO2 elimination, which can be indirectly affected by changes in ventilatory drive from raised ICT but not in this specific shape. *Air embolism* - An air embolism would cause a sudden **drop in end-tidal CO2 (EtCO2)**, often to zero, due to obstruction of pulmonary blood flow, leading to alveolar dead space. - The waveform shown does not depict a sudden drop to zero or significantly reduced EtCO2.

Q: The image shows capnography recording. Et CO2 is measured at:

Point D. ***At point D*** - This point represents the **end-tidal CO2 (EtCO2)**, which is the maximum concentration of CO2 at the end of exhalation. - The capnogram displays CO2 concentration over time, and point D is the peak of the CO2 waveform for that breath cycle, indicating the CO2 level just before inspiration begins.

Q: What does the marking $X$ at endotracheal tube indicate? (Recent NEET Pattern 2016-17)

Vocal cord marker. ***Vocal cord marker*** - The **"X" mark** on the endotracheal tube indicates the position that should ideally be aligned with the **vocal cords** upon successful intubation. - This helps in positioning the tube correctly within the trachea, ensuring the cuff is seated below the vocal cords but above the carina, preventing airway trauma and optimizing ventilation. *Murphy's eye* - The **Murphy's eye** is a hole located at the **distal tip** of the endotracheal tube, opposite the main bevel. - It serves as a safety feature to allow for ventilation even if the main opening of the tube becomes occluded. *Inflatable cuff* - The **inflatable cuff** is a balloon-like structure located near the distal end of the endotracheal tube, which, once inflated, **seals the airway** to prevent air leakage and aspiration. - The image shows the cuff inflated, but "X" points to a specific marking on the tube, not the cuff itself. *Lanz pressure regulating valve* - The **Lanz pressure regulating valve** is a device used to automatically maintain a safe and constant pressure in the endotracheal tube cuff, preventing over-inflation and reducing the risk of tracheal damage. - It is typically a separate component connected to the pilot balloon line, not a marking on the tube itself.

Q: What does the marking $X$ in the endotracheal tube indicate? (Recent NEET Pattern 2016-17)

Vocal cord marker. ***Vocal cord marker*** - The black ring that is indicated by X on the endotracheal tube is the **vocal cord marker**. - This mark helps guide proper tube placement, ensuring that the tip is correctly positioned in the trachea, past the vocal cords. *Depth marker to indicate position at teeth* - The **depth markers** are the numerical markings along the side of the tube (e.g., 20 cm, 22 cm, etc.), which indicate the distance from the tube's tip and are used to record its position relative to the teeth or gums. - The mark X represents a specific anatomical landmark, not a measurement point against the teeth. *Right bronchus marker* - There is no specific **right bronchus marker** on standard endotracheal tubes; their design is for tracheal intubation above the carina. - If a tube enters a main bronchus (e.g., right bronchus), it's typically an error of over-insertion, not a deliberate marking purpose. *Internal diameter of tube* - The **internal diameter** of the tube is usually indicated by a number printed on the tube connector, for example, 7.0 mm or 8.0 mm. - The mark X is a visual cue for positioning during intubation, not an indicator of the tube's internal bore size.

Q: The resuscitation breathing system shown below has a valve regulating flow of fresh gas to the patient. This valve marked as $X$ is

Nonrebreathing valve. ***Nonrebreathing valve*** - The valve marked X is positioned at the patient connection port of the **bag-valve-mask (BVM) device**, often called a resuscitation bag. This valve configuration is characteristic of a **non-rebreathing valve**. - Its primary function is to direct fresh gas flow to the patient during inspiration and to vent exhaled gases to the atmosphere during expiration, preventing the patient from rebreathing expired carbon dioxide. *Rebreathing valve* - A rebreathing valve would allow at least a portion of the patient’s exhaled breath to be re-inspired, typically seen in systems that conserve exhaled gas. - This valve is designed to **prevent rebreathing**, as indicated by the typical flow pattern in resuscitation bags. *Adjustable pressure limiting valve* - An **adjustable pressure limiting (APL) valve** regulates the maximum pressure within the breathing circuit and allows for manual ventilation or spontaneous breathing in an anesthetic gas delivery system. - While BVMs have pressure relief mechanisms, the valve at position X is specifically for directing gas flow for ventilation, not primarily for pressure limitation. *Adjustable volume limiting valve* - There is no standard component referred to as an "adjustable volume limiting valve" in conventional resuscitation breathing systems like the one depicted. - **Volume limitation** is typically achieved by the operator’s squeeze of the bag, or by flow restrictors, not by a dedicated valve at this position.

Q: What is the following circuit known as?

Bain circuit. ***Bain Circuit*** - The image displays a **Bain circuit**, which is a type of **Mapleson D circuit** commonly used in anesthesia. - Key features identifying it as a Bain circuit: **fresh gas tubing** runs coaxially *inside* the outer expiratory limb (tube-within-a-tube design), and the **APL (adjustable pressure limiting) valve** and **reservoir bag** are located at the **machine end**, away from the patient. - Fresh gas enters near the **patient end**, making it efficient at preventing rebreathing during controlled ventilation. *Magill circuit* - The **Magill circuit** is a **Mapleson A** system; its APL valve is located at the **patient end** (near the face mask), not the machine end. - It is the most efficient circuit for **spontaneous breathing** but inefficient for controlled ventilation. - It lacks the coaxial (tube-within-a-tube) configuration seen here. *Lack circuit* - The **Lack circuit** is also a **Mapleson A** type but uses a **coaxial design** (like Bain); however, the fresh gas runs in the **outer tube** and the expiratory gas runs in the **inner tube** — the reverse of the Bain circuit. - The APL valve is at the **machine end**, similar to Bain, but fresh gas flow direction distinguishes it. *Ayres T-piece* - The **Ayres T-piece** is a **Mapleson E** system used primarily in **pediatric patients**. - It has **no APL valve and no reservoir bag**, making it distinctly different from the circuit shown.

Q: Which of the following Mapleson system is shown below?

Mapleson D. ***Mapleson D*** - The diagram shows the hallmark features of a **Mapleson D** circuit: the **fresh gas inlet (FGF) is positioned near the patient end** of the breathing tube, while the **reservoir bag** and **adjustable pressure-limiting (APL) valve** are located at the **distal (machine) end**. - This configuration ensures that during expiration, exhaled gases are vented through the APL valve before fresh gas is wasted, making it efficient for **controlled ventilation** (unlike Mapleson A, which is efficient for spontaneous ventilation). *Mapleson A (Magill circuit)* - Fresh gas inlet is at the **machine/reservoir bag end** (opposite to Mapleson D); APL valve is close to the patient end — most efficient for **spontaneous breathing**. *Mapleson B* - Fresh gas inlet is near the patient end (similar to D), but the **APL valve is also near the patient** — less efficient than both A and D; rarely used clinically. *Mapleson C* - Similar to Mapleson B but with **shorter corrugated tubing**; APL valve near patient end; primarily used in **resuscitation** scenarios (Waters circuit variant).

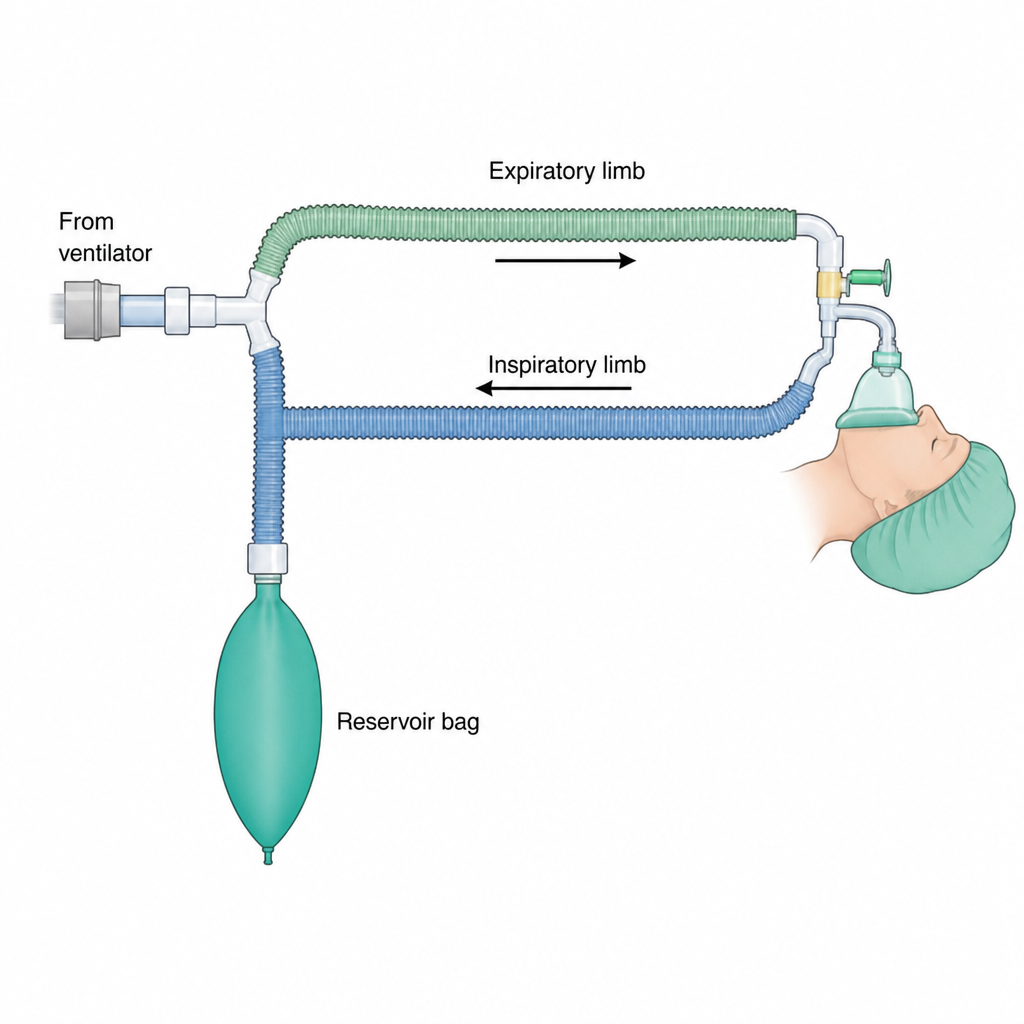

Q: Which of the following Mapleson system is shown below?

Mapleson D. ***Mapleson D*** - This system is characterized by the **fresh gas inlet (FG)** being close to the patient end (P) and the **reservoir bag** and **adjustable pressure-limiting (APL) valve (T)** being further away, typically near the expiratory limb. The corrugated tube separates the bag and valve from the patient. - The image clearly depicts the **fresh gas entering near a reservoir bag**, which is then connected via a corrugated tube to the patient end, with an **APL valve (T)** situated near the patient, right before the patient connection, which is characteristic of the Mapleson D system. *Mapleson A* - In a Mapleson A system, the **fresh gas inlet** is located near the **reservoir bag**, which is positioned far from the patient. The APL valve is also near the reservoir bag. - This arrangement is highly efficient for **spontaneous ventilation** but less so for controlled ventilation. The image shows a different configuration. *Mapleson B* - The Mapleson B system has both the **fresh gas inlet** and the **APL valve** close to the patient, with the reservoir bag at the end of a long expiratory limb. - This system is **not very efficient** for either spontaneous or controlled ventilation due to significant rebreathing potential, which is unlike the depicted system. *Mapleson C* - This system is similar to Mapleson B but with a **shorter expiratory limb**, making it more compact. - Both the **fresh gas inlet** and the **APL valve** are near the patient, with the reservoir bag also close to the patient. The image clearly shows a long corrugated tube, making this option incorrect.

Question 1

The capnography image shows:

Accepted Answer

Curare cleft

Answer

Sudden extubation

Answer

Bronchospasm

Answer

Hypothermia

Question 2

What is the next best step in patient with the following capnography tracing?

Accepted Answer

Give skeletal muscle relaxant

Answer

Check for position of endotracheal tube

Answer

Check for connections of anesthesia machine

Answer

Change the soda lime canister

Question 3

What does the following capnographic recording represent?

Accepted Answer

Asthma

Answer

Spontaneous extubation

Answer

Raised ICT

Answer

Air embolism

Question 4

The image shows capnography recording. Et CO2 is measured at:

Accepted Answer

Point D

Answer

Point A

Answer

Point B

Answer

Point C

Question 5

What does the marking $X$ at endotracheal tube indicate? (Recent NEET Pattern 2016-17)

Accepted Answer

Vocal cord marker

Answer

Murphy's eye

Answer

Inflatable cuff

Answer

Lanz pressure regulating valve

Question 6

What does the marking $X$ in the endotracheal tube indicate? (Recent NEET Pattern 2016-17)

Accepted Answer

Vocal cord marker

Answer

Depth marker to indicate position at teeth

Answer

Right bronchus marker

Answer

Internal diameter of tube

Question 7

The resuscitation breathing system shown below has a valve regulating flow of fresh gas to the patient. This valve marked as $X$ is

Accepted Answer

Nonrebreathing valve

Answer

Rebreathing valve

Answer

Adjustable pressure limiting valve

Answer

Adjustable volume limiting valve

Question 8

What is the following circuit known as?

Accepted Answer

Bain circuit

Answer

Magill circuit

Answer

Lack circuit

Answer

Ayres T-piece

Question 9

Which of the following Mapleson system is shown below?

Accepted Answer

Mapleson D

Answer

Mapleson A

Answer

Mapleson B

Answer

Mapleson C

Question 10

Which of the following Mapleson system is shown below?

Accepted Answer

Mapleson D

Answer

Mapleson C

Answer

Mapleson A

Answer

Mapleson B
